Cleco Metal Fabrication Kit – Cleco Pliers, 1/8" & 3/16" Fasteners & 1" Side Grip Clamps

Name: Cleco Metal Fabrication Kit – Cleco Pliers, 1/8" & 3/16" Fasteners & 1" Side Grip Clamps
Brand: Cleco
SKU: ATM885
Price: 78.00 AUD
Availability: InStock

$78.00 ^{inc. GST}

In Stock

Ships from Australia

Brand: Cleco | SKU: ATM885

Delivery Options

See All

Order before 3pm AEST & have it dispatched today.

AusPost Standard

Delivery Estimate

—

AusPost Express

Delivery Estimate

—

International

Delivery Estimate

Click See All for delivery estimates

Dates provided are estimates to major cities & not guarantees*

Free Shipping $199+

60 Day Returns

Security & Privacy

We do not store or have access to your credit card details.

Key Features

Holds parts securely before permanent fastening
Clamp and release in seconds with included pliers.
Pliers fit both included Cleco pins and clamps
Reusable for countless projects

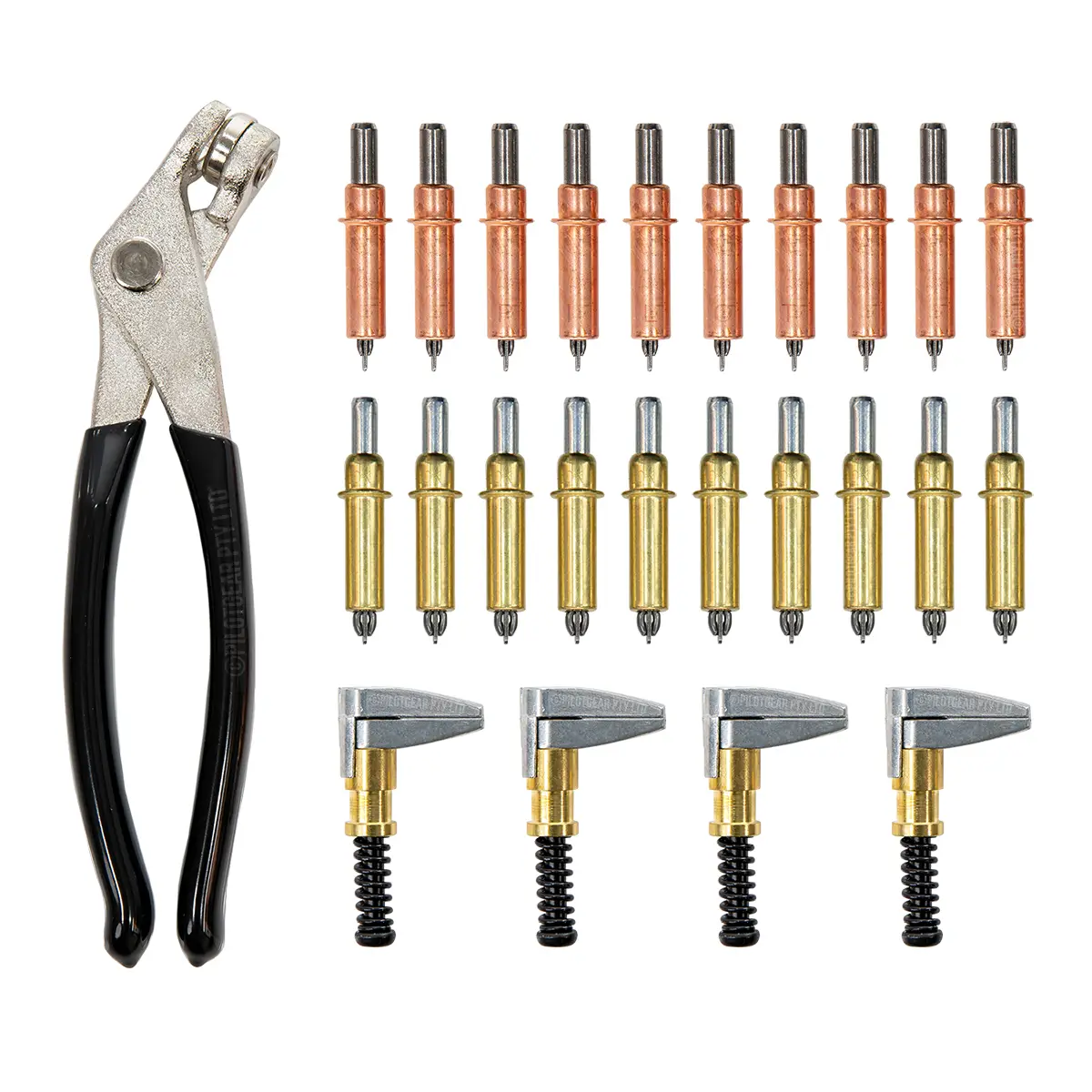

Kit Includes:

10 × 1/8" Copper Cleco Pins

Part No. AT552M

10 × 3/16" Brass Cleco Pins

Part No. AT554M

4 × 1" Brass Side Grip Clamp

Part No. SG026

1 × Cleco Pliers

Part No. H112

Pin Size Guide

Cleco Pin Sizes (General Guide)

Cleco fastener pins are available in four sizes, each identified by a unique colour code. The size corresponds to the hole diameter they fit.

Colour	Hole Size	Part No.	Link
Zinc	3/32″	AT551M	View Product
Copper	1/8″	AT552M	View Product
Black	5/32″	AT553M	View Product
Brass	3/16″	AT554M	View Product
Activate using Cleco Pliers which work with all sizes of pins & side grip clamps.			View Product
Activate using Cleco Pliers which work with all sizes of pins & side grip clamps.		View Product

This guide shows all our available pin sizes. Check the kit details for what’s included.

Clamp Size Guide

Cleco Side Grip Clamps (General Guide)

Side grip clamps come in copper (1/2" max opening) and brass (3/4" max opening). Each is available in a 1/2" and 1" jaw length.

Max Opening	Jaw Length	Part No.	Link
1/2"	1/2"	SG020	View Product
1/2"	1″	SG022	View Product
3/4"	1/2″	SG024	View Product
3/4"	1″	SG026	View Product
Activate using Cleco Pliers which work with all sizes of pins & side grip clamps.			View Product
Activate using Cleco Pliers which work with all sizes of pins & side grip clamps.		View Product

This guide shows all our available side grip clamp sizes. Check the kit details for what’s included.

4 payments of AU $0.00 i

Cleco Metal Fabrication Kit – Cleco Pliers, 1/8" & 3/16" Fasteners & 1" Side Grip Clamps

$78.00

Description

Product Details: This Cleco Fastener & Clamp Set is a must-have for any metal fabrication project — ideal for welding, drilling, riveting, or precise panel fitting. It combines everything you need to securely position and hold sheet metal parts during assembly, mock-up, or repair.

The included Cleco pins (1/8" and 3/16") are spring-loaded fasteners that fit into pre-drilled holes, acting like temporary rivets to tightly clamp two sheets together. Use the included Cleco pliers to quickly insert and remove them during test fitting or alignment.

The pliers also operate the 1" brass side grip clamps, which are designed to securely grip the edge of your workpiece. These spring-loaded clamps are ideal for a wide range of applications, holding materials without the need for drilled holes. They minimise surface marking, prevent over-tightening, and are perfect for bonding, sealing, gluing, or general assembly tasks.

Specifications

Brand	Cleco
Category	Mixed Size Kits
SKU	ATM885
Shipping Weight	0.8 kg
Total Items in Kit	25

Directions for Use

Cleco Pins

Position the panels - Place one panel over the other in the desired position where you want to join them.
Drill the hole - At each fastening point, drill through both panels using a drill bit that matches the cleco size you plan on using: (1/8″ or 3/16″).
Load the cleco into pliers - Squeeze the Cleco pliers to compress a cleco fastener.
Insert the cleco - While holding the pliers compressed, insert the cleco into the drilled hole, then release the pliers so the fastener locks in place.
Repeat along the joint - Continue drilling and inserting clecos at the required spacing until the panels are secured.
Remove when finished - To remove, use the pliers to compress the cleco and pull it out of the hole.

Cleco Clamps

Align the panels – Place the panels edge-to-edge in the position you want to hold them together.
Load the clamp into pliers – Squeeze the Cleco pliers to compress a side grip clamp.
Attach the clamp – Position the clamp so the jaws grip across both panel edges, then release the pliers so the clamp grips tightly.
Remove when finished – To remove, use the pliers to compress the clamp and lift it off the panels.

Brand	Cleco
Category	Mixed Size Kits
SKU	ATM885
Shipping Weight	0.8 kg
Total Items in Kit	25

Cleco Pins

Position the panels - Place one panel over the other in the desired position where you want to join them.
Drill the hole - At each fastening point, drill through both panels using a drill bit that matches the cleco size you plan on using: (1/8″ or 3/16″).
Load the cleco into pliers - Squeeze the Cleco pliers to compress a cleco fastener.
Insert the cleco - While holding the pliers compressed, insert the cleco into the drilled hole, then release the pliers so the fastener locks in place.
Repeat along the joint - Continue drilling and inserting clecos at the required spacing until the panels are secured.
Remove when finished - To remove, use the pliers to compress the cleco and pull it out of the hole.

Cleco Clamps

Align the panels – Place the panels edge-to-edge in the position you want to hold them together.
Load the clamp into pliers – Squeeze the Cleco pliers to compress a side grip clamp.
Attach the clamp – Position the clamp so the jaws grip across both panel edges, then release the pliers so the clamp grips tightly.
Remove when finished – To remove, use the pliers to compress the clamp and lift it off the panels.
